We find the construction industry a very diverse market with lots of interesting applications. Heatrod has worked on a wide range of applications ranging from frost protection and heating for on-site concrete production through to end user comfort heating.

Also as the Standard Assessment Procedure (SAP) becomes more strict on the use of fossil fuels, pure electric heating is becoming the simple and go to technology for comfort heating our homes.

Access to technologies such as engineered heating cables and in house production of trench heaters for direct heating of window recesses are core prciniples of our business.

Our team of application engineers are trained to be able to consult with our customers in solving their heating challenges and to be able to provide technically and commercially competitive solutions to our customers. Add to this our centre of competence in Sweden and our ability to manufacture and install locally and you have access to a full project delivery team ready to support you.

  • Technical data

    Nozzle Elements are produced with high precision and with high surface loading to meet the high demands of quick and safe heating. During the manufacturing process the element is subject to very high pressure to reach high insulation resistance, good heat transmission without internal voids in the element and a very smooth surface for optional and uniform heat transmission from the total surface of the element. The element is absolutely tight to avoid that for instance melted plastic, oil or gas can leak in.

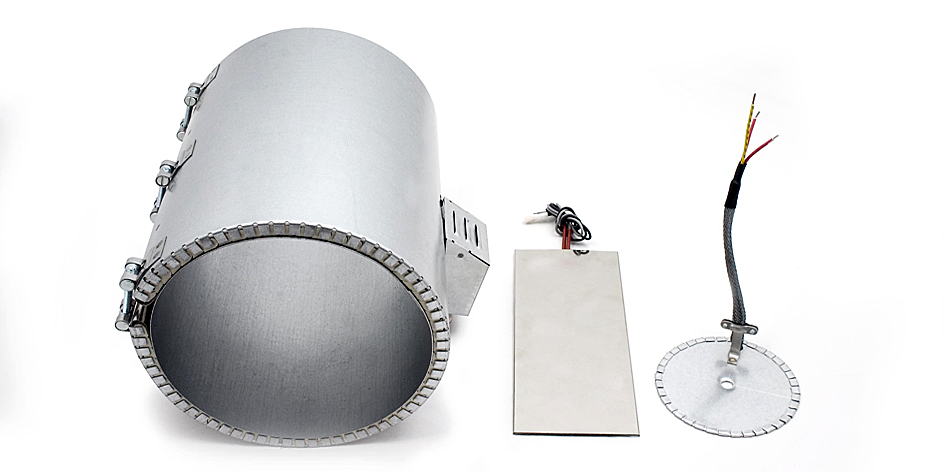

    Ring and Band Elements are generally produced and supplied to according to customer specification. Examples application areas are: Injection moulding machines-extruders, containers, tanks, moulds, tools, etc. The design of these units is typically either Micanite or Ceramic with plate casing.

    Types: We can supply both UTX and UTC design cartridge heaters in a huge variety of sizes and also to custom specifications.



    Material

    Stainless steel AISI 321/EN 1.4541

    Dimension

    Ø 6.5 , 8, 10, 12.5, 16, 20 mm
    Inactive section app. 10 mm at the connection end and appr. 5 mm at the other end.

    Connections

    250 mm glass fibre armoured nickel wire
    Helical protective hose, zincified steel strip
    Wave hose (gas- and liquid tight)
    Armoured hose, zincified
    Right angle casing

    Additional

    Reamed holes a smallest tolerance H7
    are required (Swedish standard). If a surface load greater that 20W/cm2 is required, individual adjustment is necessary.
