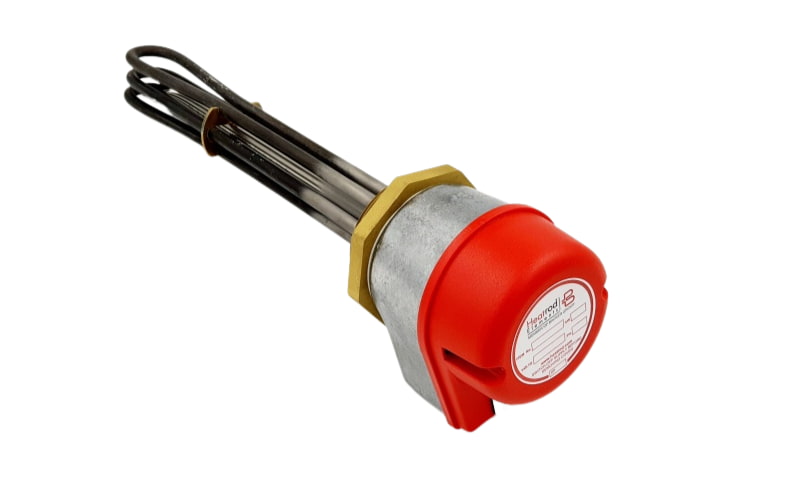

HRZ Light Industrial

The HRZ Range of immersion heaters are designed specifically for hard water areas with a heavy duty titanium element. This heater is ideal for use in water and chemical applications, due to the low watts density of the element sheath.

Features

  • Heavy duty titanium element
  • IP55 rotatable terminal cover
  • Single thermostat pocket

Benefits

  • Designed for hard water areas
  • Flexible fitting & wiring options
  • Flexible operational features (manual or fixed heat settings)
  • Large range of thermostats available
  • Unique design offers both single and three phase installation
  • HRZ Immersion Heaters

    Product Code

    Voltage

    kW

    Fixing BSP

    Immersed

    Length (inches)

    Buy Online

    HRZ311A

    240/415

    3

    2.25"

    11

    Buy Online

    HRZ311B

    240/415

    3

    2"

    11



    HRZ311C

    240/415

    3

    1.75"

    11








    HRZ316A

    240/415

    3

    2.25"

    16


    HRZ316B

    240/415

    3

    2"

    16


    HRZ316C

    240/415

    3

    1.75"

    16

    Buy Online







    HRZ616A

    240/415

    6

    2.25"

    16

    Buy Online

    HRZ616B

    240/415

    6

    2"

    16

    Buy Online

    HRZ616C

    240/415

    6

    1.75"

    16

    Buy Online







    HRZ624A

    240/415

    6

    2.25"

    24


    HRZ624B

    240/415

    6

    2"

    24


    HRZ624C

    240/415

    6

    1.75"

    24








    HRZ636A

    240/415

    6

    2.25"

    36


    HRZ636B

    240/415

    6

    2"

    36


    HRZ636C

    240/415

    6

    1.75"

    36








    HRZ916A

    240/415

    9

    2.25"

    16

    Buy Online

    HRZ916B

    240/415

    9

    2"

    16

    Buy Online

    HRZ916C

    240/415

    9

    1.75"

    16

    Buy Online







    HRZ924A

    240/415

    9

    2.25"

    24


    HRZ924B

    240/415

    9

    2"

    24


    HRZ924C

    240/415

    9

    1.75"

    24








    HRZ936A

    240/415

    9

    2.25"

    36


    HRZ936B

    240/415

    9

    2"

    36


    HRZ936C

    240/415

    9

    1.75"

    36








    HRZ1224A

    415

    12

    2.25"

    24


    HRZ1224B

    415

    12

    2"

    24


    HRZ1224C

    415

    12

    1.75"

    24








    HRZ1236A

    415

    12

    2.25"

    36


    HRZ1236B

    415

    12

    2"

    36


    HRZ1236C

    415

    12

    1.75"

    36



    • HRZ Technical data

      Material

      Titanium

      Loading

      3-12kW, Element Diameter: 8mm

      Design

      IP55 robust rotatable enclosure

      Voltage

      415V 3-Phase, 240V 1-Phase

      Temperature range

      Control temp max 80°C, safety cutout 90°C

      Optional

      Supplied with or without thermostat

      Others

      Alternative mounting options available
