Trench Heaters
Trench & Perimeter heating can be used as either the primary or secondary heating source, either as a standalone system or to help improve efficiency of other heating sources by counteracting heat losses through glazed panels/windows.
Trench heating is a stylish but discrete heating system, which can be mounted in to the floor to ensure no space from the area is removed or obstructed.
Our range of heaters can be designed bespoke to your application/specification, with a number of grill and design finishes available.
Example of Applications
- Primary or secondary heating source
- Standalone system
Benefits
- Even temperature distribution
- Counteract heat loss through glazed windows/panels
- Positive effect on air circulation in the room
- Discreet heating solution
-
Technical Data
General notes:
Heating Type: Natural Convection
Heating Technology: Electrical Heating Element (Finned)
Design Format: Standard/Bespoke
Design Style: Trench & Perimeter (Free Standing)

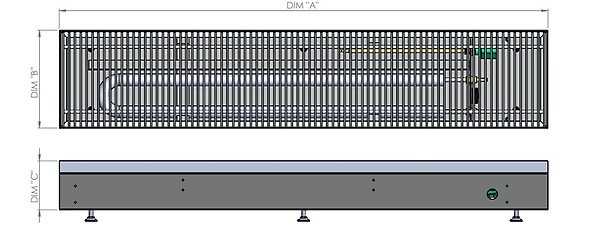

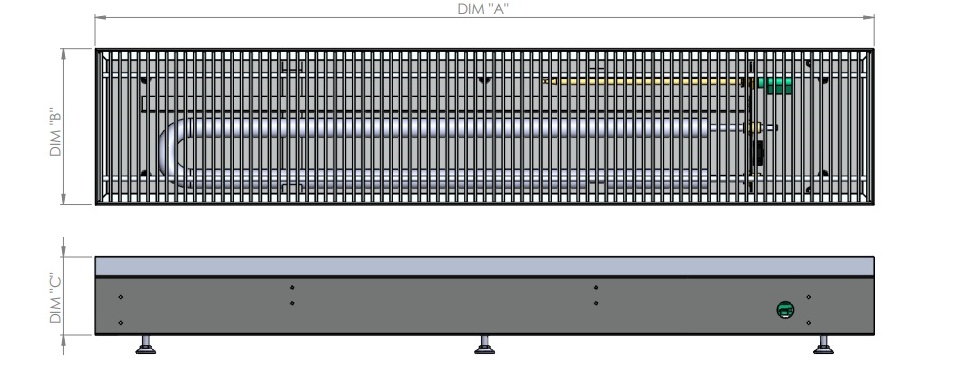

PART NO.
DIM "A"
DIM "B"
DIM "C"
KW RATING
TR100S
1000
200
100
400
TR100L
1500
200
100
600
TR150S
1000
200
150
400
TR150L
1500
200
150
600
TR200S
1000
200
200
500
TR200L
1500
200
200
800
NOTES: STANDARD RANGES LISTED ABOVE, ALL DIMENSIONS AND WATTAGES CAN BE ADJUSTED TO SUIT CLIENT SPECIFICATION.

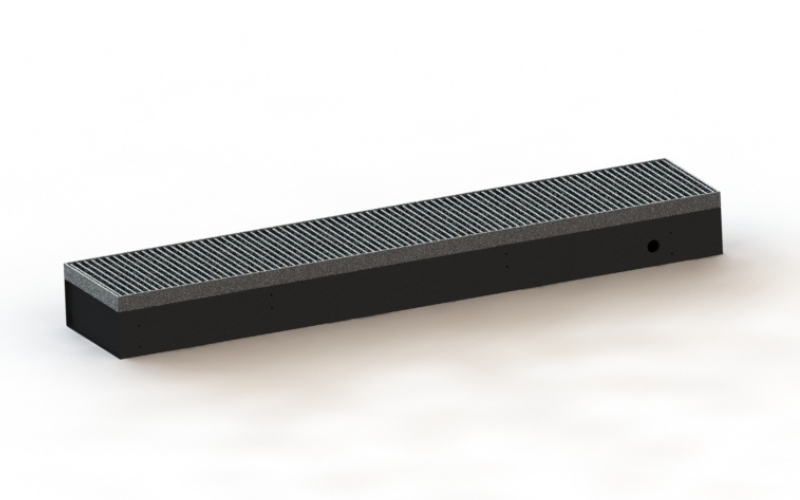

Product examples
