Electronic Contactors

(Solid State Contactors)

IC Electronic A/S is a recent acquisition by our parent company NIBE, who are the world's largest heating element manufacturer.

The P Line range of Electronic Contactors (Solid State Contactors) are built using low thermal expansion (LTE) technology and are available for heating/resistive applications up to 63A. The P Line range is available in different versions including single, dual or three Phase Contactors, these units are suitable for a variety of applications wherever downtime is to be reduced in the application.

Features

  • Rated operational voltage up to 480VAC 50/60Hz
  • Control voltage from 5-24VDC or 24-230VAC/DC
  • Compact modular design 22.5, 45 or 90mm
  • LED status indication
  • Meets EN 60947-4-3 requirements
  • Requires no additional components
  • Built-in varistor protection
  • IP20 protection

Benefits

Advantages over mechanical contactors & relays

  • Silent operation
  • Faster switching operation
  • No arcing of contacts, can be used in explosive or flame proof applications such as ATEX
  • Longer lasting as there are no moving parts susceptible to wear & tear
  • Less sensitive to factors such as; vibration, mechanical shock & external magnetic field
  • Product information

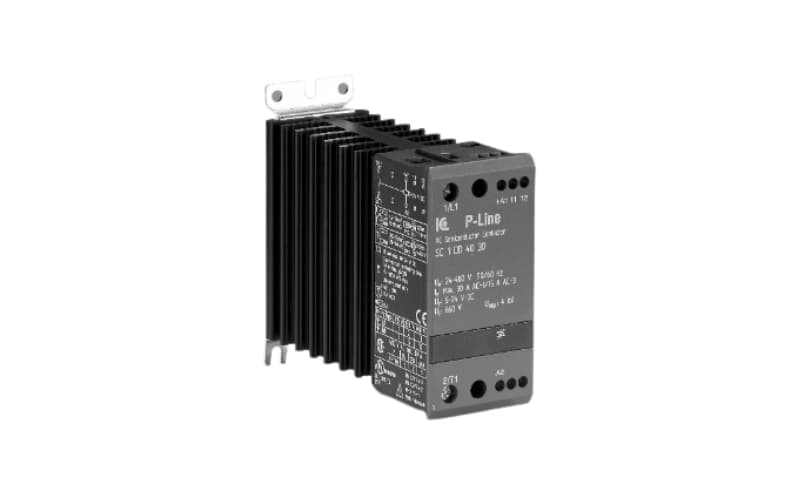

    RC11 - Single Phase Electronic Contactor

    RC11 Single Phase Electronic Contactor

    The RC 11 range offers a fully assembled complete device which requires no additional components. This range has a rated operation voltage up to 480VAC 50/60 Hz, with a rated operational current up to 15/30/50/63A AC-1 and a Control voltage from 5-24VDC or 24-230VAC/DC. These units also include built-in varistor protection, LED indication and IP20 protection.



    RC11 Data Sheet Pdf, 299 kB.


    RC22 - Single Phase Electronic Contactor

    RC 33 Three Phase Electronic Contactor

    The RC 22 range offers a fully assembled complete device which requires no additional components. This range has a rated operation voltage up to 480VAC 50/60 Hz, with a rated operational current up to 30/50A AC-1 and a Control voltage from 5-24VDC or 24-230VAC/DC. These units also include built-in varistor protection, LED indication and IP20 protection.



    RC22 Data Sheet Pdf, 255 kB.


    RC32 - Three Phase Electronic Contactor

    RC 33 Three Phase Electronic Contactor

    The RC 32 range offers a fully assembled complete device which requires no additional components. This range has a rated operation voltage up to 480VAC 50/60 Hz, with a rated operational current up to 15/25A AC-1 and a Control voltage from 5-24VDC or 24-230VAC/DC. These units also include built-in varistor protection, LED indication and IP20 protection.



    RC32 Data Sheet Pdf, 107 kB.

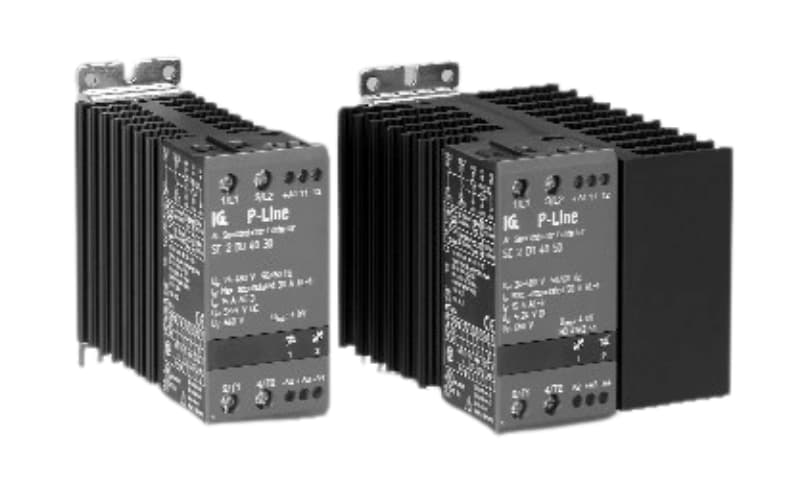

    RC33 - Three Phase Electronic Contactor

    RC 33 Three Phase Electronic Contactor

    The RC 33 range offers a fully assembled complete device which requires no additional components. This range has a rated operation voltage up to 480VAC 50/60 Hz, with a rated operational current up to 10/20A AC-1 and a Control voltage from 5-24VDC or 24-230VAC/DC. These units also include built-in varistor protection, LED indication and IP20 protection.



    RC33 Data Sheet Pdf, 109 kB.
