HRF Flanged Immersions

The HRF Range of flanged immersion heaters are a bespoke product designed specifically to customer requirements. In most cases the heating elements are fully welded into the required flange plate. For certain applications where titanium elements are required, mechanical compression fittings are used as an alternative. There are a variety of different control boxes available from Mild Steel powder coated to Stainless Steel 316 for more durable applications.

We offer various controls including mechanical temperature controls and also a fully digital standalone heater which displays the current heater settings for more accurate requirements.

Features

  • IP55 terminal cover
  • Typical flange diameters 90-645mm
  • kW rating from 1-500kW, dependant on flange size

Benefits

  • Various sheath materials available (incoloy 800, 825, stainless steel 321, 304, 316, 309 & titanium)
  • Various sheath diameters (8mm, 9.5mm, 10.9mm & 12mm)
  • External input available
  • Standard & bespoke flanges available (PN, ANSI)
  • Range of gasket materials
HRF Flange Immersion Heaters
  • HRF Flanged Immersion Heaters

    HRF GAC2C Flanged Immersion Heaters - Brass

    Product Code

    kW

    Number of

    Elements

    Immersed

    Length (inches)

    HRF1216 GAC2C

    12

    6

    16

    HRF1816 GAC2C

    18

    9

    16

    HRF2416 GAC2C

    24

    9

    16

    HRF2716 GAC2C

    27

    9

    16

    HRF3027 GAC2C

    30

    6

    27

    HRF3627 GAC2C

    36

    9

    27

    HRF4527 GAC2C

    45

    9

    27

    HRF5436 GAC2C

    54

    9

    36

    Temperature control: 40-88°C | Cut out temperature: 35-85°C

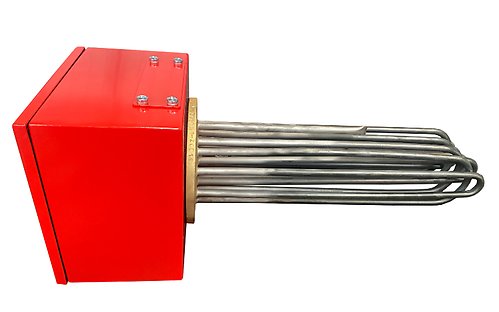

    HRF 2716 GAC2C

    HRF ALC2Z Flanged Immersion Heaters - Stainless Steel

    Product Code

    kW

    Number of

    Elements

    Immersed

    Length (mm)

    HRF1224 ALC2Z

    12

    6

    600

    HRF1824 ALC2Z

    18

    6

    600

    HRF2424 ALC2Z

    24

    12

    600

    HRF3624 ALC2Z

    36

    12

    600

    HRF3636 ALC2Z

    36

    12

    900

    HRF4824 ALC2Z

    48

    12

    600

    HRF4836 ALC2Z

    48

    12

    900

    HRF5436 ALC2Z

    54

    12

    900

    Temperature control: 40-88°C | Cut out temperature: 35-85°C

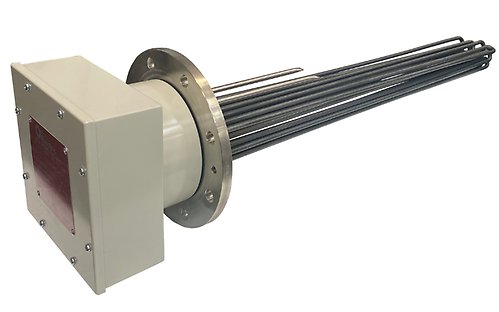

    HRF 3636 ALCZ2
