HRH ATEX Immersions

When environmental conditions become unsafe to use ordinary immersion heaters, Heatrod can offer a wide range of explosion-proof heating solutions.

Having manufactured our first range of hazardous area heaters back in 1953, Heatrod can provide a hazardous area version for the majority of our products, together with bespoke hazardous area air and gas heaters. Fully ATEX certified to class IIB and with standard screw-in immersions up to fully engineered 180kW process heaters. We can also provide IIC certified products from other group manufacturers.

Example of Applications

  • Flameproof immersion
  • Flameproof in-line flow heater
  • Flameproof gas heater
  • Flameproof air heater

Features & Benefits

  • IP67 Exd ATEX certified terminal cover
  • Incoloy 825 alloy sheathed elements
  • Brass, carbon or stainless steel flanges
  • Removable core options, with plain, or options for stainless steel & copper
  • Standard range up to 180kW
  • Control & high limit thermostats
  • Operating pressures up to 10 bar (standard)
  • Wide range of thermostats available
  • Variety of voltage options

The term 'explosive atmosphere' is defined as a mix of inflammable substances in the form of gases, vapour, mist or dust - which may lead to fire spreading to the un-burnt mix following ignition. Atmospheric conditions are normally defined as -20°C to +40°C, pressure 0.8-1.1 bar. We produce equipment for ATEX areas, with different temperature and pressure on the media and for all temperature classes.

  • HRH Technical data

    Material

    Incoloy 825

    Loading

    1-12kW, element Diameter: 8mm

    Design

    Head thread size 2, 2¼, 2½" BSP

    IP67 ATEX certified terminal cover

    Voltage

    240/415V

    Optional

    Removable core elements

    Others

    Optional thermostat ranges available

    • Screw In Range

      Model

      kW Rating

      Fixing BSP

      Medium

      Immersed Length

      5FP/RWT/x

      1-12

      2"

      Water

      11-36"

      6FP/RWT/x

      1-12

      2¼"

      Water

      11-36"

      6FP/CWTT/x

      1-6

      2¼"

      Water

      13-68"

      7FP/CWTT/x

      1-6

      2¼"

      Water

      13-68"

      5FP/CP/x

      1-8

      2"

      Oil

      18-130"

      7FP/CPT/x

      1-8

      2½"

      Oil

      18-130"

These products are always application specific, so please contact our Sales Engineering Team for more information.

ATEX logo

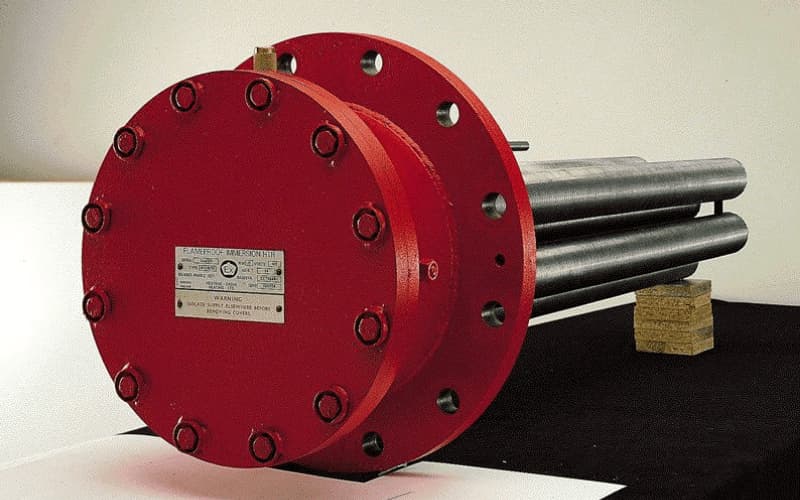

HRH Flameproof Immersion
